PRODUCT CATEGORYConnected project component

Temperature Controller

Add a short product description.

Request for quote

Send an enquiry and Banyan will reply with a price, availability and delivery details

Stock confirmed when you enquire

One product? Message us directly. Several? Add them to the cart and send one enquiry — no account needed.

Delivery & final amountDelivery options, taxes, timing and charges are confirmed for your location before ordering.

Enquiry checkoutNo payment is collected on this website. Banyan confirms availability, price and next steps on WhatsApp.

Product information

Details & specifications

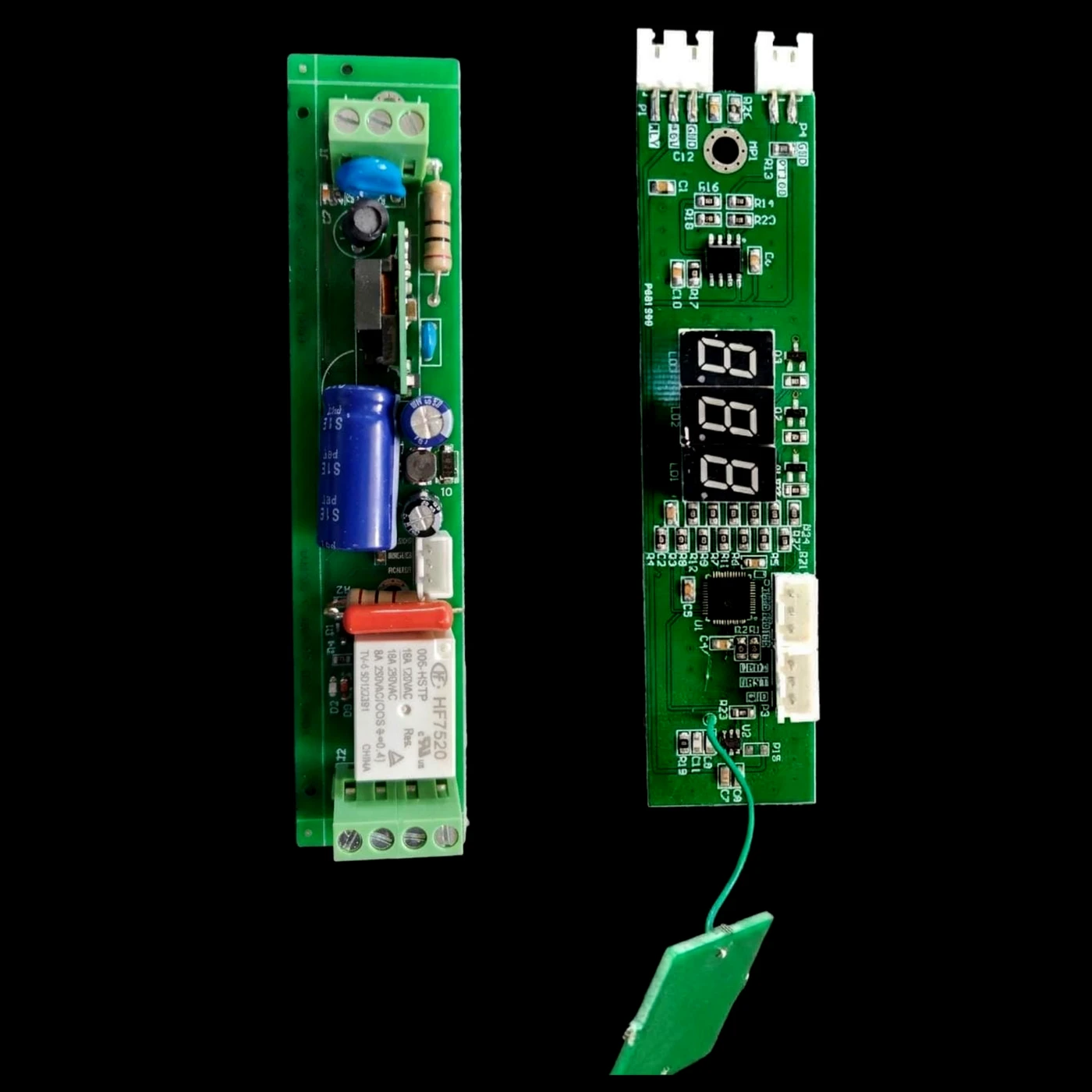

• Runs directly on 230 V AC with a built-in isolated SMPS, no external adapter needed
• 16 A Hongfa HF7520 power relay for heaters, motors, pumps and lighting loads
• RC snubber (X2 capacitor + resistor) across the relay contacts to reduce arcing and extend relay life
• Surge varistor and fusible resistor on the mains input for protection
• 3-digit 7-segment LED display for time, temperature or set value
• Capacitive touch pad on a flexible lead, so the control can sit behind glass or plastic
• Onboard microcontroller with programming header for custom firmware
• Spare input connector for a sensor (e.g. temperature probe)
• Slim strip-format boards that fit narrow housings
• Screw terminals for mains input and load output
